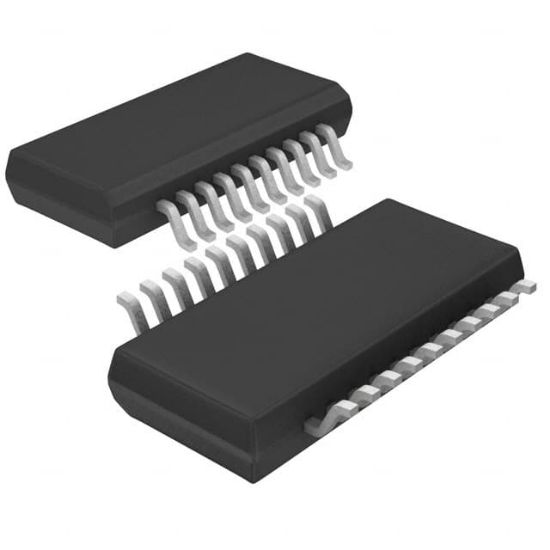

NB3N65027DTG

IC CLK SYNTHESIZER 3-PLL 20-QSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NB3N65027DTG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NB3N65027DTG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3N65027	NB3N65027DTG		QSOP-20	0	3.3 V Programmable 3-PLL Clock Synthesizer with 6 LVTTL/LVCMOS Outputs w/OE

Voltage - Supply	3V ~ 3.6V
Input	LVCMOS, LVTTL, Crystal
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
Supplier Device Package	20-QSOP
Number of Circuits	1
Output	LVCMOS, LVTTL
Package	Tube
Ratio - Input:Output	1:7
Differential - Input:Output	No/No
Type	-
Divider/Multiplier	Yes/Yes
Frequency - Max	125MHz
PLL	Yes
RoHS	RoHS
