MSB709-RT1

TRANS PNP 45V 0.1A SC59

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MSB709-RT1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MSB709-RT1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ARx	MSB709-RT1		SC70	3	PNP General Purpose Amplifier Transistor

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 10mA, 100mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100 mA

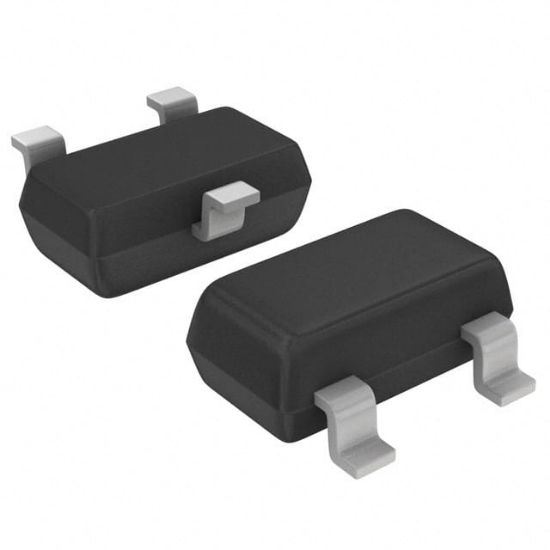

Supplier Device Package	SC-59
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	200 mW
Package	Tape & Reel (TR),Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	210 @ 2mA, 10V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	PNP
