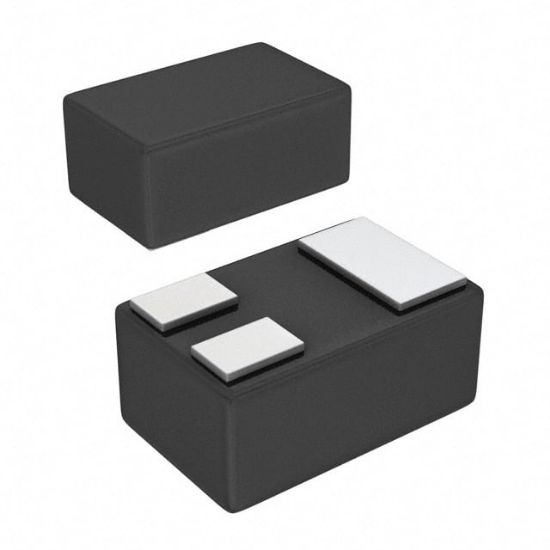

MMBT3906LP-7

TRANS PNP 40V 0.2A 3DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: MMBT3906LP-7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MMBT3906LP-7 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	400mV @ 5mA, 50mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	200 mA
Supplier Device Package	X1-DFN1006-3
Current - Collector Cutoff (Max)	50nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	40 V
Power - Max	250 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Frequency - Transition	300MHz
RoHS	RoHS
Transistor Type	PNP
