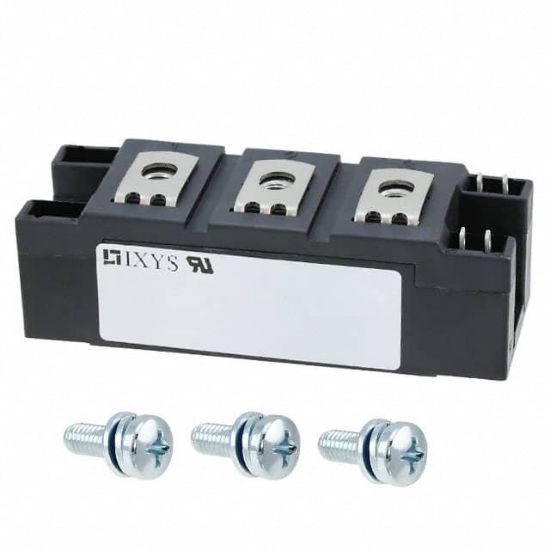

MCD200-14IO1

MOD THYRISTOR/DIODE 1400V Y4-M6

1 review(s) | Add your review

Availability: In stock

Manufacturer: IXYS

SKU: MCD200-14IO1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MCD200-14IO1 Description

Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Voltage - Gate Trigger (Vgt) (Max)	2 V
Structure	Series Connection - SCR/Diode
Voltage - Off State	1.4 kV
Current - On State (It (AV)) (Max)	216 A
Current - Gate Trigger (Igt) (Max)	150 mA
Package	Bulk
Current - Non Rep. Surge 50, 60Hz (Itsm)	8000A, 8600A
Current - On State (It (RMS)) (Max)	340 A
Number of SCRs, Diodes	1 SCR, 1 Diode
Current - Hold (Ih) (Max)	150 mA
RoHS	RoHS
