IRGS4715DPBF-6367380

IGBT WITH RECOVERY DIODE

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IRGS4715DPBF-6367380

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRGS4715DPBF-6367380 Description

Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	21 A

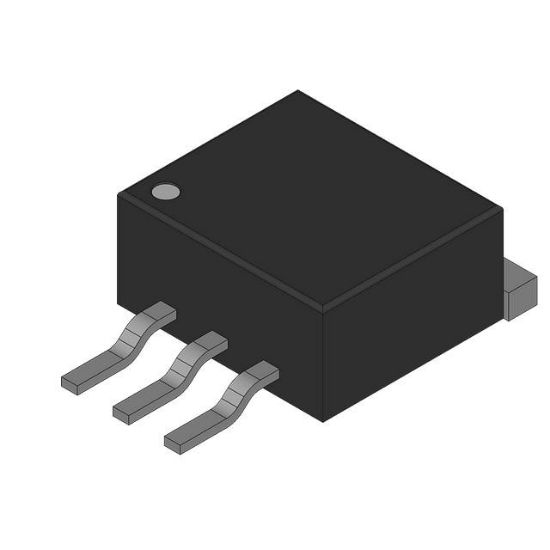

Supplier Device Package	D2PAK
Gate Charge	30 nC
Voltage - Collector Emitter Breakdown (Max)	650 V
Power - Max	100 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	24 A
Td (on/off) @ 25°C	30ns/100ns
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 8A
Test Condition	400V, 8A, 50Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	86 ns
Switching Energy	200μJ (on), 90μJ (off)
RoHS	RoHS
