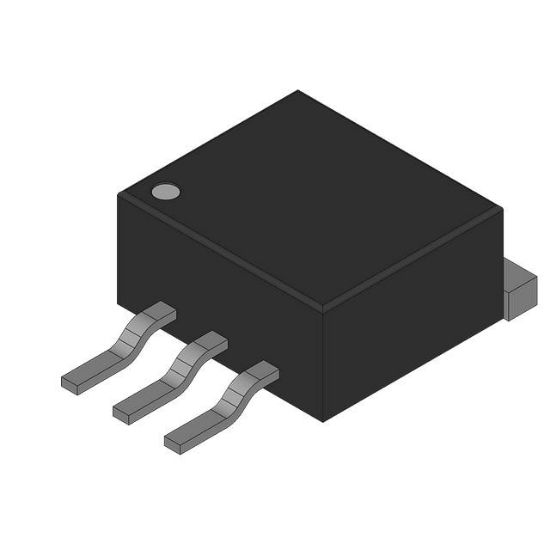

IRGS4610DPBF-6367344

IGBT WITH RECOVERY DIODE

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IRGS4610DPBF-6367344

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRGS4610DPBF-6367344 Description

Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	16 A
Supplier Device Package	D2PAK
Gate Charge	13 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	77 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	18 A
Td (on/off) @ 25°C	27ns/75ns
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 6A
Test Condition	400V, 6A, 47Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	74 ns
Switching Energy	56μJ (on), 122μJ (off)
RoHS	RoHS
