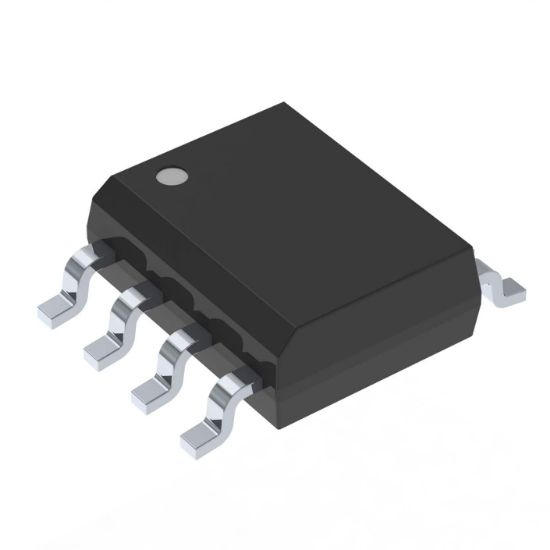

IRF7460PBF

MOSFET N-CH 20V 12A 8SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRF7460PBF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRF7460PBF Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F7460	IRF7460PBF		SO-8	0	HEXFET Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12A (Ta)
Rds On (Max) @ Id, Vgs	10mOhm @ 12A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tube
Power Dissipation (Max)	2.5W (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 4.5 V
Supplier Device Package	8-SO
Input Capacitance (Ciss) (Max) @ Vds	2050 pF @ 10 V
RoHS	RoHS
