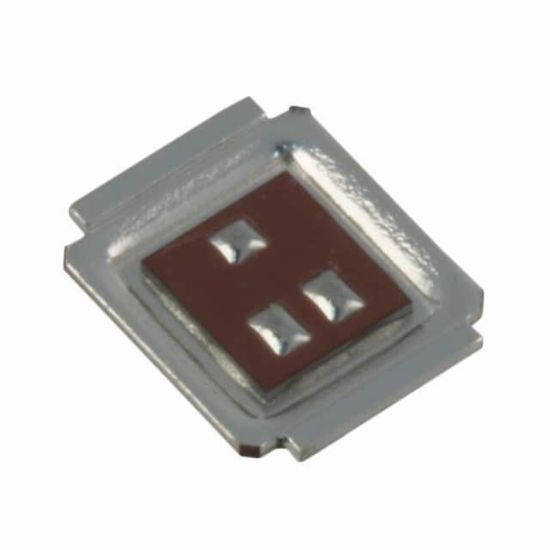

IRF6691TRPBF

MOSFET N-CH 20V 32A DIRECTFET

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRF6691TRPBF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRF6691TRPBF Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
6691	IRF6691TRPBF		DirectFET-MT	0	A 20V Single N-Channel HEXFET Power MOSFET with integrated monolithic Schottky diode

Operating Temperature	-40°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	32A (Ta), 180A (Tc)
Rds On (Max) @ Id, Vgs	1.8mOhm @ 15A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.8W (Ta), 89W (Tc)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	71 nC @ 4.5 V
Supplier Device Package	DIRECTFET? MT
Input Capacitance (Ciss) (Max) @ Vds	6580 pF @ 10 V
RoHS	RoHS

Service Assurance

The transaction is just the beginning, ONEPCBA provides a closed-loop service that guarantees quality from pre-sales to after-sales. As a value-added service provider, we provide quality assurance, including a longer after-sales guarantee time than the original factory.

We have established a clean, constant temperature warehouse, and constantly monitor the temperature and humidity of the warehouse. For electrostatic sensitive devices (MOS, transistors, CMOS devices, etc.), use electrostatic shielding measures; for magnetic field sensitive devices, also use corresponding magnetic field isolation measures.

In addition to ensuring the quality of components from the source, we have also established a strict QC warehousing process. We have established a database of components, including labels, chip appearances, chip silkscreens, and markings of wafers inside some chips. Compare the differences from various dimensions, and strictly confirm with the original factory. At the same time, we will also conduct other test requirements put forward by customers such as solderability, X-ray perspective inspection, ultrasonic scanning, slicing, uncapping, ambient temperature test, etc.

We establish a continuous cooperative relationship with original manufacturers, agents, and authorized catalogs to control the quality of materials from the source. Therefore, the components we sell are all traceable. Whether it is a process change or a version upgrade, we can be notified at the first time and inform customers of possible changes in advance to deal with various possible problems.
