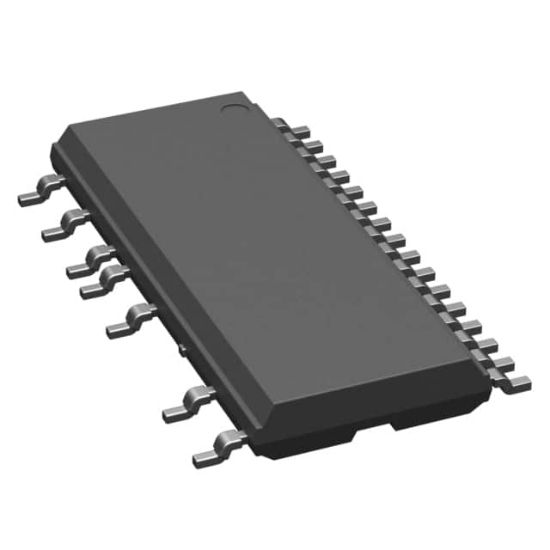

IM240M6Z1BALMA1

IGBT MODULE 600V 8.9W 23SOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IM240M6Z1BALMA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IM240M6Z1BALMA1 Description

Operating Temperature	-40°C ~ 125°C
Input	Standard
Input Capacitance (Cies) @ Vce	-
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	-
Supplier Device Package	23-SOP
NTC Thermistor	Yes
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	8.9 W
IGBT Type	-
Package	Tube
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 4A
Configuration	Three Phase Inverter
RoHS	RoHS
Current - Collector Cutoff (Max)	40 μA
