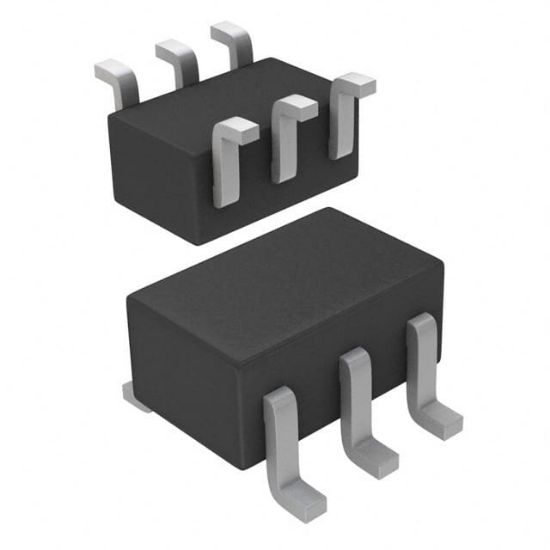

HN1C03FU-A(TE85L,F

TRANS 2NPN 20V 0.3A US6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Toshiba Semiconductor and Storage

SKU: HN1C03FU-A(TE85L,F

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HN1C03FU-A(TE85L,F Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	100mV @ 3mA, 30mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	300mA
Supplier Device Package	US6
Power - Max	200mW
Current - Collector Cutoff (Max)	100nA (ICBO)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 4mA, 2V
Frequency - Transition	30MHz
RoHS	RoHS
Voltage - Collector Emitter Breakdown (Max)	20V
Transistor Type	2 NPN (Dual)
