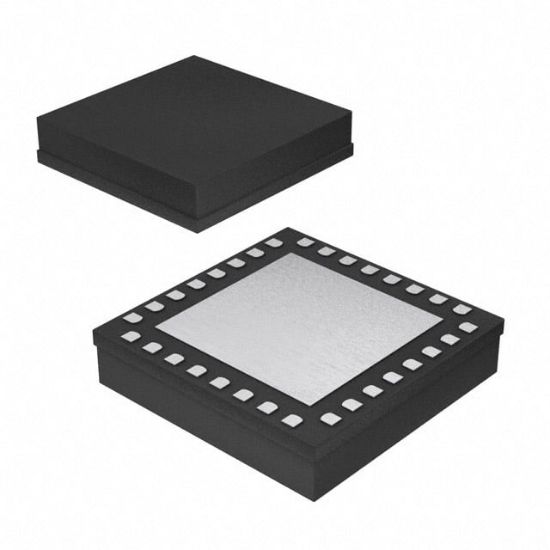

HMC510LP5TR-6073859

VOLTAGE CONTROLLED OSCILLATOR, 8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: HMC510LP5TR-6073859

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HMC510LP5TR-6073859 Description

Voltage - Supply	5V
Tuning Voltage (VDC)	2 V ~ 13 V
Icc Max	360mA
Power (dBm)	-6±2, 11±3, 12.5±2.5
Package	Bulk
Frequency Range	4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
Phase Noise Typ (dBc/Hz)	-116
Pushing (MHz/V)	20
Height	0.039\" (1.00mm)
Frequency - Center	4.5GHz, 9GHz
Operating Temperature	-40°C ~ 85°C
2nd Harmonic, Typ (dBc)	15
Size / Dimension	0.197\" L x 0.197\" W (5.00mm x 5.00mm)
RoHS	RoHS
