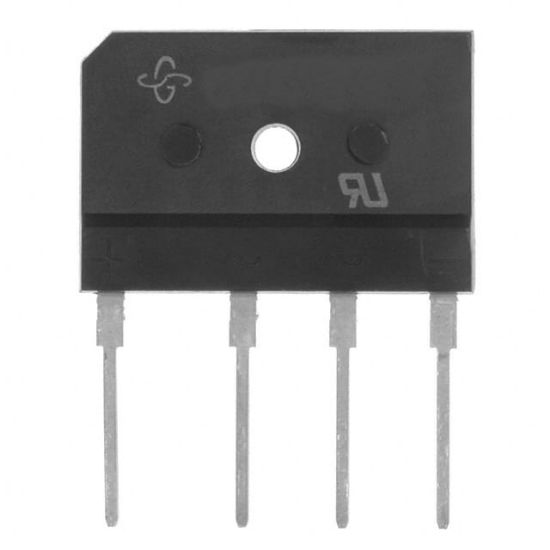

GSIB2560-E3/45

BRIDGE RECT 1P 600V 3.5A GSIB-5S

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: GSIB2560-E3/45

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

GSIB2560-E3/45 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Voltage - Forward (Vf) (Max) @ If	1 V @ 12.5 A
Current - Average Rectified (Io)	3.5 A
RoHS	RoHS
Voltage - Peak Reverse (Max)	600 V
Current - Reverse Leakage @ Vr	10 μA @ 600 V
Supplier Device Package	GSIB-5S
Package	Tube
Diode Type	Single Phase
Mounting Type	Through Hole
Technology	Standard
