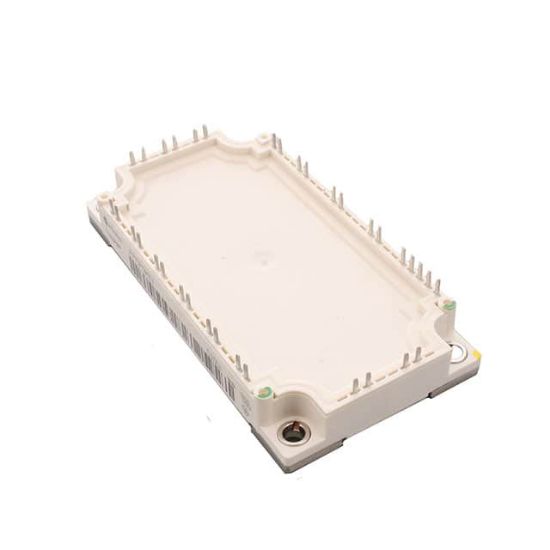

FP75R12KE3BOSA1

IGBT MOD 1200V 105A 355W

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: FP75R12KE3BOSA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FP75R12KE3BOSA1 Description

Operating Temperature	-40°C ~ 125°C (TJ)
Input	Standard
Input Capacitance (Cies) @ Vce	5.3 nF @ 25 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	105 A
Supplier Device Package	Module
NTC Thermistor	No
Voltage - Collector Emitter Breakdown (Max)	1200 V
Power - Max	355 W
IGBT Type	NPT
Package	Bulk
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 75A
Configuration	Single
RoHS	RoHS
Current - Collector Cutoff (Max)	5 mA
