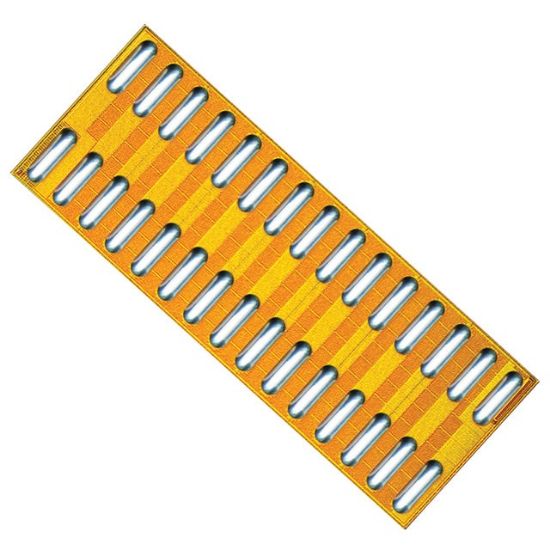

EPC2206

GANFET N-CH 80V 90A DIE

1 review(s) | Add your review

Availability: In stock

Manufacturer: EPC

SKU: EPC2206

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

EPC2206 Description

Operating Temperature	-40°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	GaNFET (Gallium Nitride)
Current - Continuous Drain (Id) @ 25°C	90A (Ta)
Rds On (Max) @ Id, Vgs	2.2mOhm @ 29A, 5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	-
Drain to Source Voltage (Vdss)	80 V
Vgs (Max)	+6V, -4V
Vgs(th) (Max) @ Id	2.5V @ 13mA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 5 V
Supplier Device Package	Die
Input Capacitance (Ciss) (Max) @ Vds	1940 pF @ 40 V
RoHS	RoHS
