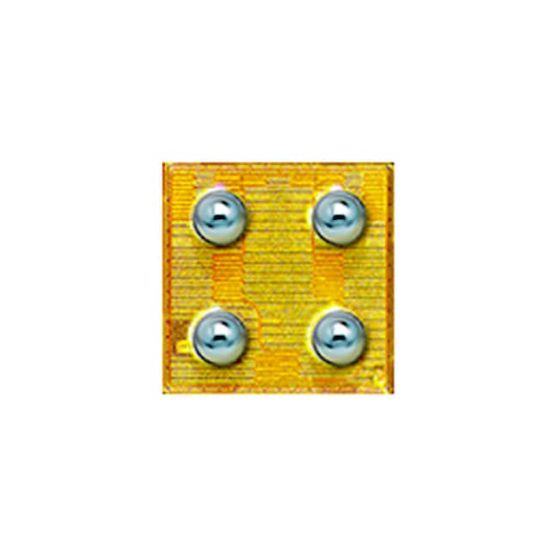

EPC2036

GANFET N-CH 100V 1.7A DIE

1 review(s) | Add your review

Availability: In stock

Manufacturer: EPC

SKU: EPC2036

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

EPC2036 Description

Operating Temperature	-40°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	GaNFET (Gallium Nitride)
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Rds On (Max) @ Id, Vgs	65mOhm @ 1A, 5V
FET Type	N-Channel
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	-
Drain to Source Voltage (Vdss)	100 V
RoHS	RoHS
Vgs (Max)	+6V, -4V
Drive Voltage (Max Rds On, Min Rds On)	5V
Gate Charge (Qg) (Max) @ Vgs	0.91 nC @ 5 V
Supplier Device Package	Die
Input Capacitance (Ciss) (Max) @ Vds	90 pF @ 50 V
Vgs(th) (Max) @ Id	2.5V @ 600μA
