EMIF02-USB04F3

FILTER RC(PI) 33 OHM/20PF SMD

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: EMIF02-USB04F3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

EMIF02-USB04F3 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo

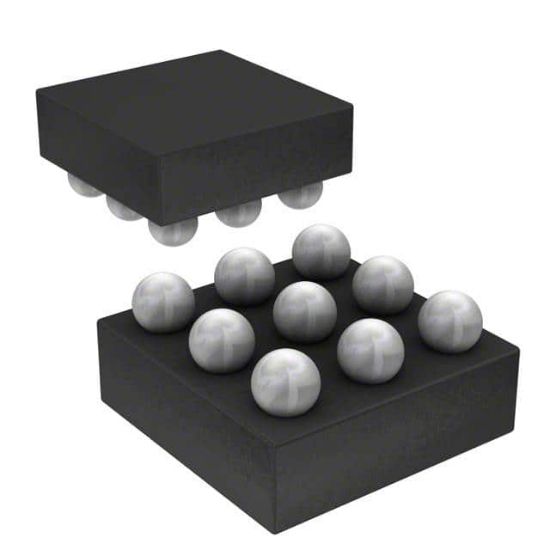

JMx	EMIF02-USB04F3		FlipChip-9	9	3-line IPADTM, EMI filter including ESD protection

Operating Temperature	-40°C ~ 85°C
Values	R = 33Ohms, C = 20pF
Current	-
Technology	RC (Pi)
Resistance - Channel (Ohms)	33
ESD Protection	Yes
Size / Dimension	0.045\" L x 0.045\" W (1.14mm x 1.14mm)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Filter Order	2nd
Mounting Type	Surface Mount
Height	0.022\" (0.55mm)
Type	Low Pass
Number of Channels	3
Applications	Data Lines for Mobile Devices
Center / Cutoff Frequency	-
RoHS	RoHS
Voltage - Rated	-
Attenuation Value	-
