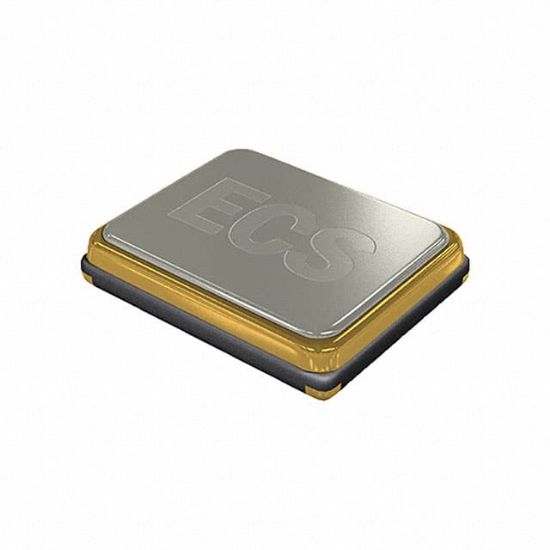

ECS-120-20-33-AEL-TR

CRYSTAL 12.0000MHZ 20PF SMD

1 review(s) | Add your review

Availability: In stock

Manufacturer: ECS Inc.

SKU: ECS-120-20-33-AEL-TR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ECS-120-20-33-AEL-TR Description

Operating Temperature	-10°C ~ 70°C
ESR (Equivalent Series Resistance)	100 Ohms
Load Capacitance	20pF
Mounting Type	Surface Mount
Frequency Stability	±50ppm
Ratings	-
Size / Dimension	0.126\" L x 0.098\" W (3.20mm x 2.50mm)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Height - Seated (Max)	0.031\" (0.80mm)
Frequency	12 MHz
Type	MHz Crystal
Operating Mode	Fundamental
Frequency Tolerance	±25ppm
RoHS	RoHS
