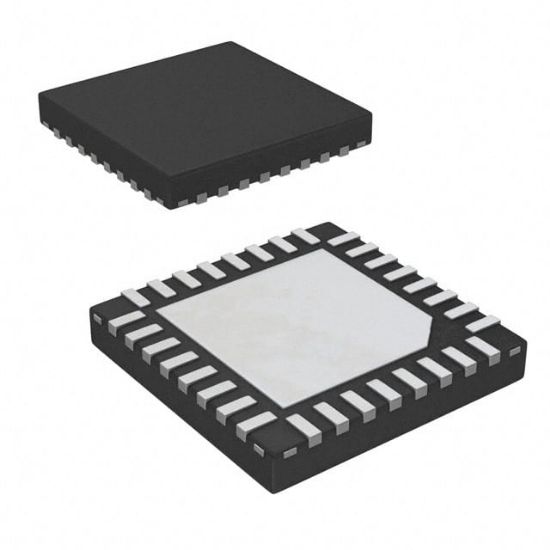

DS90CP04TLQ

IC CROSSPOINT SW 1 X 4:4 32WQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: DS90CP04TLQ

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DS90CP04TLQ Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
90CP04T	DS90CP04TLQ	TI	32	0	1.5 Gbps 4x4 LVDS Crosspoint Switch

Circuit	1 x 4:4
Independent Circuits	1
Type	Crosspoint Switch
Supplier Device Package	32-WQFN (6x6)
RoHS	RoHS
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2.375V ~ 2.625V
Current - Output High, Low	-
Voltage Supply Source	Single Supply
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Mounting Type	Surface Mount
