D01-9952042

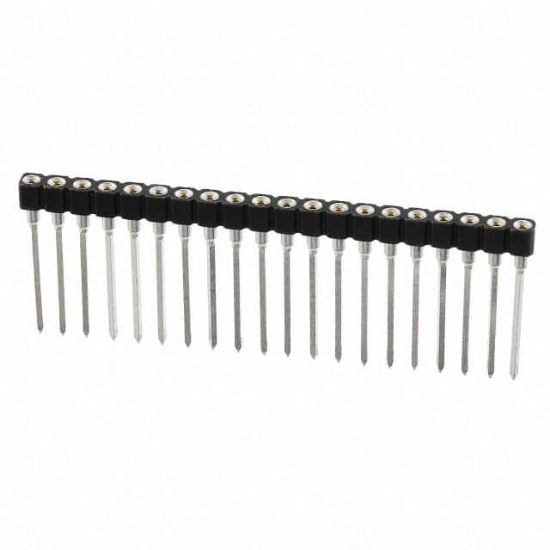

CONN SOCKET SIP 20POS GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Harwin Inc.

SKU: D01-9952042

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

D01-9952042 Description

Operating Temperature	-55°C ~ 125°C
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Mounting Type	Through Hole
Contact Finish Thickness - Post	196.9μin (5.00μm)
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Pitch - Mating	0.100\" (2.54mm)
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass
Package	Tube
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Termination	Wire Wrap
Type	SIP
Features	-
RoHS	RoHS
Number of Positions or Pins (Grid)	20 (1 x 20)
Pitch - Post	0.100\" (2.54mm)
