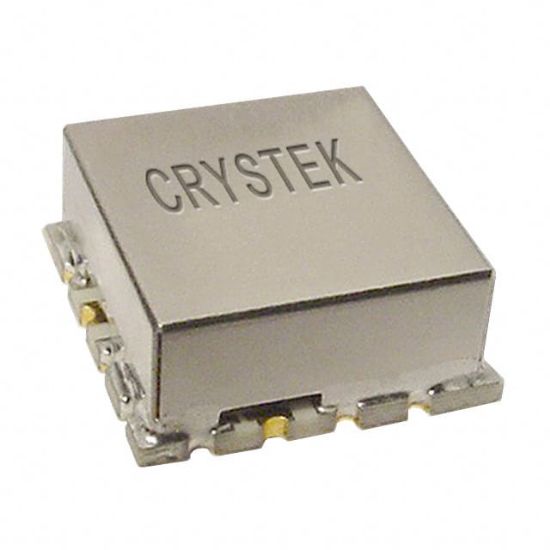

CVCO55CC-2300-2400

VCO 2350MHZ 0.3-4.7V 12.7X12.7MM

1 review(s) | Add your review

Availability: In stock

Manufacturer: Crystek Corporation

SKU: CVCO55CC-2300-2400

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CVCO55CC-2300-2400 Description

Voltage - Supply	5V
Tuning Voltage (VDC)	0.3 V ~ 4.7 V
Icc Max	30mA (Typ)
Power (dBm)	3 ±3
Package	Strip
Frequency Range	2300 ~ 2400MHz
Phase Noise Typ (dBc/Hz)	-104 (Max)
Pushing (MHz/V)	1 (Typ)
Height	0.220\" (5.59mm)
Frequency - Center	2350MHz
Operating Temperature	-40°C ~ 85°C
2nd Harmonic, Typ (dBc)	-20
Size / Dimension	0.500\" L x 0.500\" W (12.70mm x 12.70mm)
RoHS	RoHS
