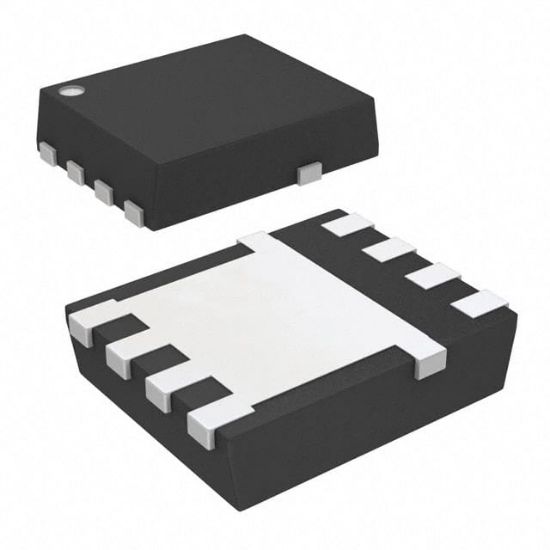

CSD17551Q5A

MOSFET N-CH 30V 48A 8VSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CSD17551Q5A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CSD17551Q5A Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CSD17551	CSD17551Q5A	TI	8	0	N-Channel NexFET Power MOSFET, CSD17551Q5A

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	48A (Tc)
Rds On (Max) @ Id, Vgs	8.8mOhm @ 11A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	3W (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	7.2 nC @ 4.5 V
Supplier Device Package	8-VSONP (5x6)
Input Capacitance (Ciss) (Max) @ Vds	1272 pF @ 15 V
RoHS	RoHS
