CSD13202Q2

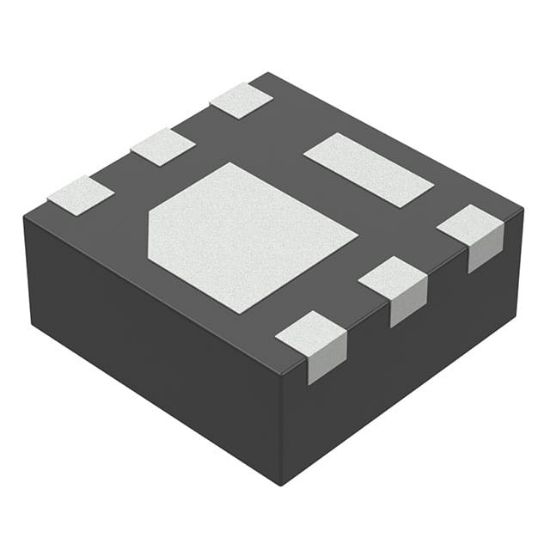

MOSFET N-CH 12V 22A 6WSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CSD13202Q2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CSD13202Q2 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1322	CSD13202Q2	TI	6	0	N-Channel Power MOSFET, CSD13202Q2, 12V Vds, 9.3mohm Rdson4.5 (max)

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Rds On (Max) @ Id, Vgs	9.3mOhm @ 5A, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.7W (Ta)
Drain to Source Voltage (Vdss)	12 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1.1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	6.6 nC @ 4.5 V
Supplier Device Package	6-WSON (2x2)
Input Capacitance (Ciss) (Max) @ Vds	997 pF @ 6 V
RoHS	RoHS
