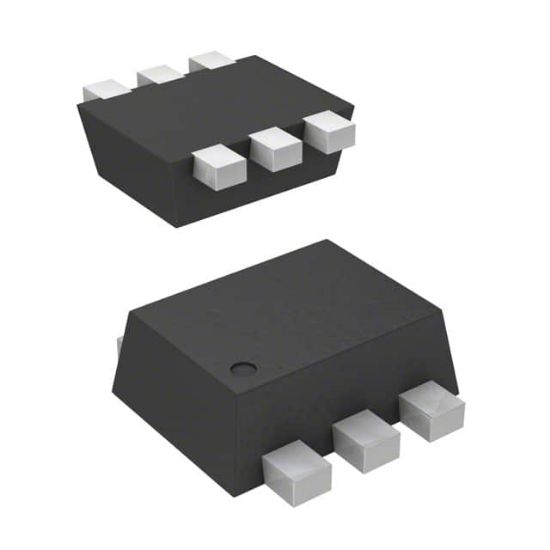

CMLDM7003T TR

MOSFET 2N-CH 50V 0.28A SOT563

1 review(s) | Add your review

Availability: In stock

Manufacturer: Central Semiconductor Corp

SKU: CMLDM7003T TR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CMLDM7003T TR Description

Operating Temperature	-65°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	SOT-563
Current - Continuous Drain (Id) @ 25°C	280mA
Rds On (Max) @ Id, Vgs	1.5Ohm @ 50mA, 5V
FET Type	2 N-Channel (Dual)
Power - Max	350mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	50V
Vgs(th) (Max) @ Id	1.2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	0.76nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
RoHS	RoHS
