CM1213-06MR

TVS DIODE 3.3VWM 8.8VC 8-MSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: CM1213-06MR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CM1213-06MR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D137	CM1213-06MR		Micro8	0	6-Channel Low Capacitance ESD Protection Arrays

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - Reverse Standoff (Typ)	3.3V
Power - Peak Pulse	-
Voltage - Clamping (Max) @ Ipp	8.8V (Typ)
Mounting Type	Surface Mount

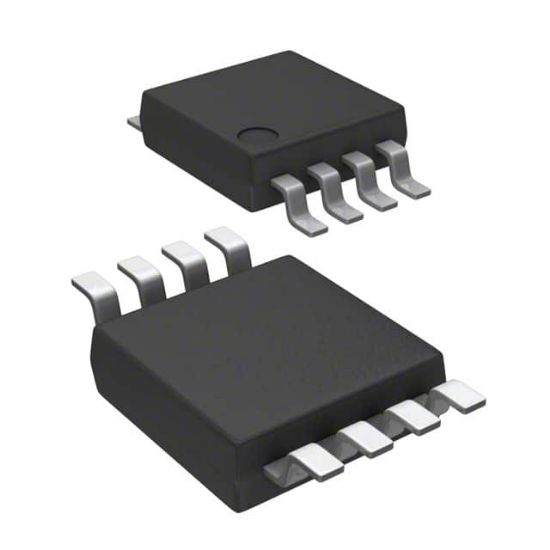

Supplier Device Package	8-MSOP
Capacitance @ Frequency	-
Voltage - Breakdown (Min)	6V
Current - Peak Pulse (10/1000μs)	1A (8/20μs)
Unidirectional Channels	6
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Line Protection	Yes
Type	Steering (Rail to Rail)
Bidirectional Channels	-
Applications	General Purpose
RoHS	RoHS
