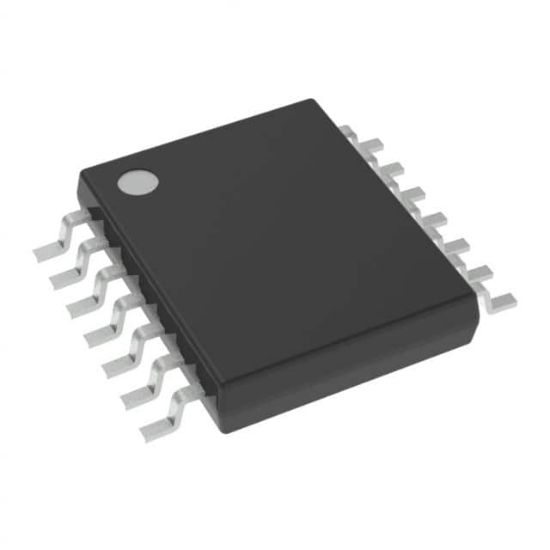

CD4013BPWRE4

IC FF D-TYPE DUAL 1BIT 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CD4013BPWRE4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CD4013BPWRE4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CM013B	CD4013BPWRE4	TI	14	0	CMOS Dual D-Type Flip Flop

Voltage - Supply	3V ~ 18V
Number of Elements	2
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Number of Bits per Element	1
Function	Set(Preset) and Reset
Clock Frequency	24 MHz
Operating Temperature	-55°C ~ 125°C (TA)
Package	Tape & Reel (TR)
Max Propagation Delay @ V, Max CL	90ns @ 15V, 50pF
Type	D-Type
Current - Output High, Low	6.8mA, 6.8mA
Trigger Type	Positive Edge
Current - Quiescent (Iq)	4 μA
RoHS	RoHS
Input Capacitance	5 pF
Output Type	Complementary
