BZX84C3V6LT1G

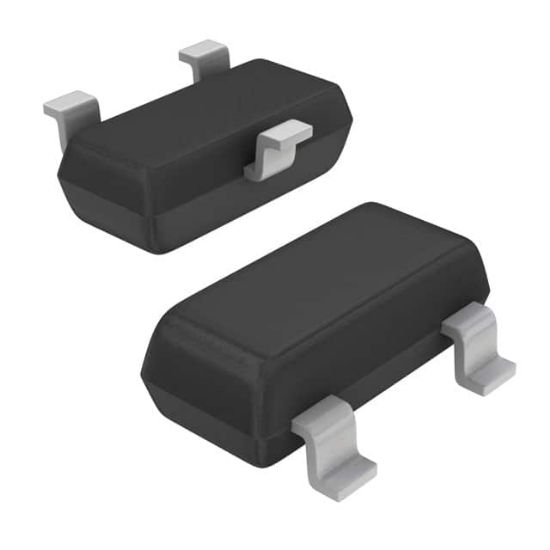

DIODE ZENER 3.6V 225MW SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BZX84C3V6LT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BZX84C3V6LT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Z15	BZX84C3V6LT1G	ON	SOT?23	3	Zener?Voltage?Regulators

Impedance (Max) (Zzt)	90 Ohms
Power - Max	225 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C (TJ)
RoHS	RoHS
Current - Reverse Leakage @ Vr	5 μA @ 1 V
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Zener (Nom) (Vz)	3.6 V
Tolerance	±6%
