BZX84C12LT1

DIODE ZENER 12V 250MW SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BZX84C12LT1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BZX84C12LT1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Y2x	BZX84C12LT1		SOT-23	0	225 mW 12 V 5% Zener Diode Voltage Regulator
Y2	BZX84C12LT1		SOT-23	3	12V 225 mW Zener Voltage Regulator Diode

Impedance (Max) (Zzt)	25 Ohms
Power - Max	250 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C (TJ)
RoHS	RoHS
Current - Reverse Leakage @ Vr	100 nA @ 8 V
Mounting Type	Surface Mount

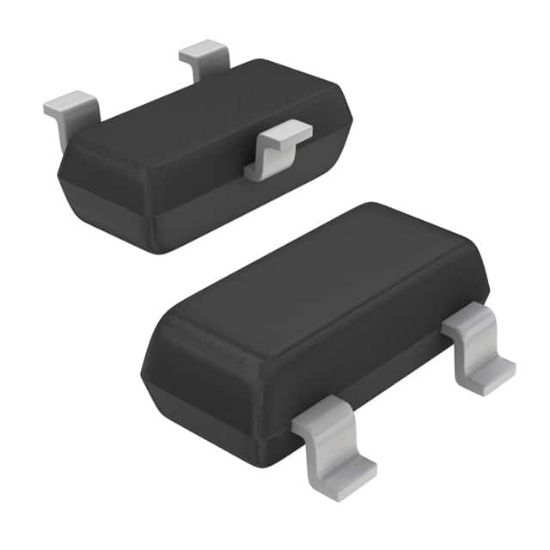

Supplier Device Package	SOT-23-3 (TO-236)
Package	Tape & Reel (TR),Cut Tape (CT),Bulk
Voltage - Zener (Nom) (Vz)	12 V
Tolerance	±5%
