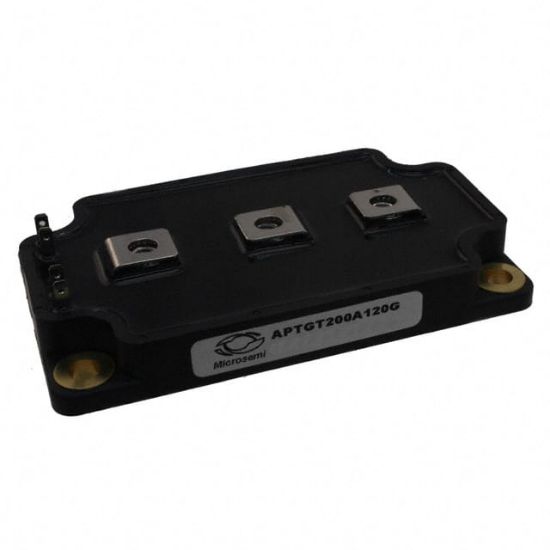

APTGT200A120G

IGBT MODULE 1200V 280A 890W SP6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: APTGT200A120G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

APTGT200A120G Description

Operating Temperature	-40°C ~ 150°C (TJ)
Input	Standard
Input Capacitance (Cies) @ Vce	14 nF @ 25 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	280 A
Supplier Device Package	SP6
NTC Thermistor	No
Voltage - Collector Emitter Breakdown (Max)	1200 V
Power - Max	890 W
IGBT Type	Trench Field Stop
Package	Bulk
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 200A
Configuration	Half Bridge
RoHS	RoHS
Current - Collector Cutoff (Max)	350 μA
