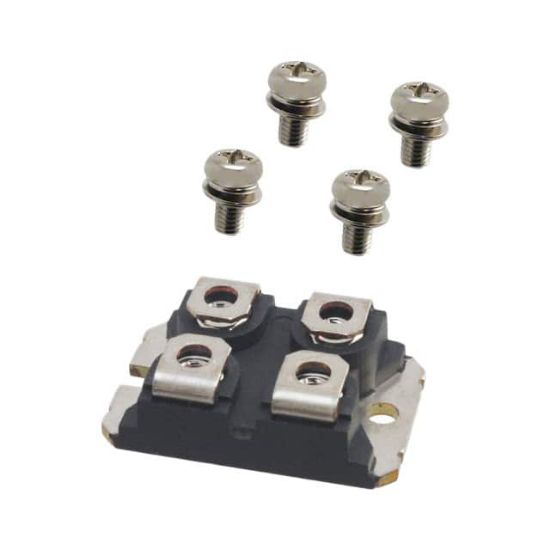

APT100GT120JU2

IGBT MOD 1200V 140A 480W SOT227

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: APT100GT120JU2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

APT100GT120JU2 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Input	Standard
Input Capacitance (Cies) @ Vce	7.2 nF @ 25 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	140 A
Supplier Device Package	SOT-227
NTC Thermistor	No
Voltage - Collector Emitter Breakdown (Max)	1200 V
Power - Max	480 W
IGBT Type	Trench Field Stop
Package	Bulk
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 100A
Configuration	Single
RoHS	RoHS
Current - Collector Cutoff (Max)	5 mA
