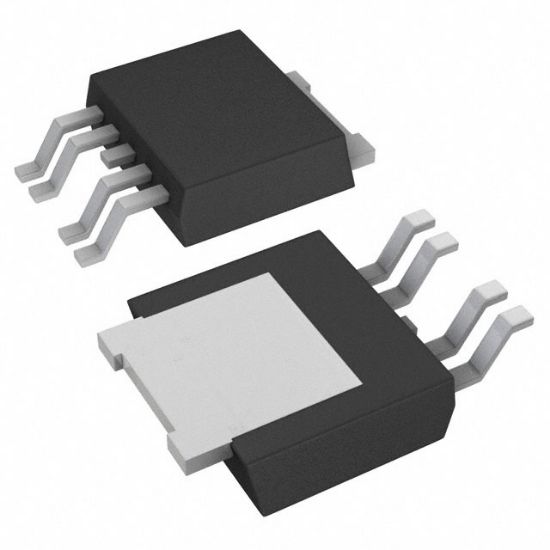

AOD609

MOSFET N/P-CH 40V 12A TO252-4

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOD609

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOD609 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D609	AOD609	Aosmd	TO-252-4L	4	互补增强模式场效应晶体管

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	TO-252-4L
Current - Continuous Drain (Id) @ 25°C	12A
Rds On (Max) @ Id, Vgs	30mOhm @ 12A, 10V
FET Type	N and P-Channel, Common Drain
Power - Max	2W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	40V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	10.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 20V
RoHS	RoHS
