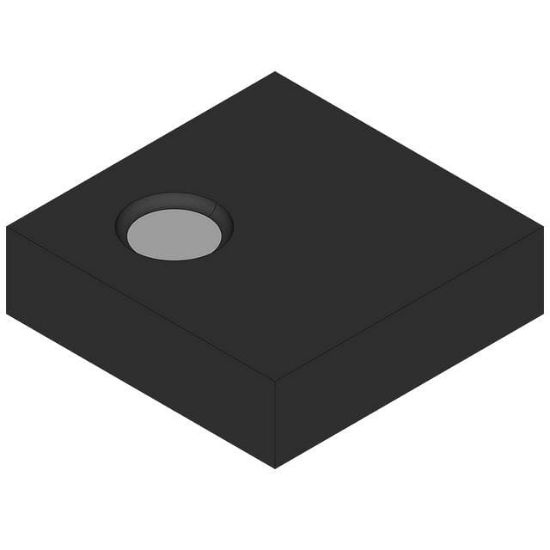

74LVC2G66GM

SPST, 2 FUNC, 1 CHANNEL, CMOS, P

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: 74LVC2G66GM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

74LVC2G66GM Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
V66	74LVC2G66GM	Phi	SOT902-1	0	2-channel analog switch

Operating Temperature	-40°C ~ 125°C (TA)
Channel Capacitance (CS(off), CD(off))	5pF
On-State Resistance (Max)	10Ohm
Mounting Type	Surface Mount
Supplier Device Package	8-XQFN (1.6x1.6)
Switch Circuit	SPST - NO
Voltage - Supply, Dual (V±)	1.65V ~ 5.5V
Number of Circuits	2
Package	Bulk
Charge Injection	7.5pC
Switch Time (Ton, Toff) (Max)	3.9ns, 5ns
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Crosstalk	-56dB @ 1MHz
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	-
-3db Bandwidth	500MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	500nA
