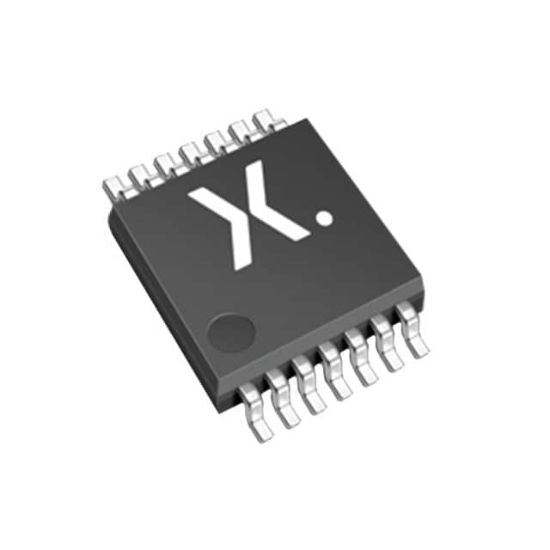

74HC05PW,118-7531671

IC INVERTER OD 6CH 6-INP 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: 74HC05PW,118-7531671

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

74HC05PW,118-7531671 Description

Voltage - Supply	2V ~ 6V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	15ns @ 6V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Logic Level - High	1.5V ~ 4.2V
Number of Circuits	6
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	2 μA
Logic Level - Low	0.5V ~ 1.8V
Number of Inputs	6
Operating Temperature	-40°C ~ 125°C
Features	Open Drain
RoHS	RoHS
Current - Output High, Low	-, 5.2mA
