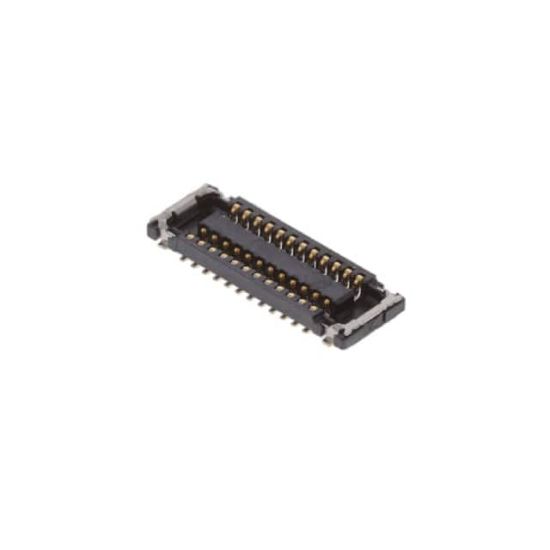

5055502420

CONN RCPT 24POS SMD GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Molex

SKU: 5055502420

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

5055502420 Description

Number of Positions	24
Pitch	0.016\" (0.40mm)
Height Above Board	0.026\" (0.65mm)
Features	Solder Retention
RoHS	RoHS
Connector Type	Receptacle, Center Strip Contacts
Contact Finish Thickness	4.00μin (0.100μm)
Contact Finish	Gold
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Mated Stacking Heights	0.8mm
Mounting Type	Surface Mount
Number of Rows	2
