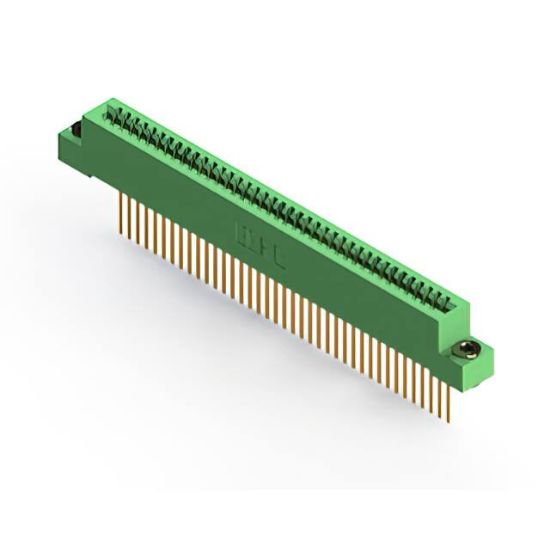

342-039-541-103

342 SERIES (.100" (2.54MM) CONTA

1 review(s) | Add your review

Availability: In stock

Manufacturer: EDAC Inc.

SKU: 342-039-541-103

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

342-039-541-103 Description

Card Thickness	0.054\" ~ 0.070\" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row	39
Pitch	0.100\" (2.54mm)
Card Type	Non Specified - Single Edge
Mounting Type	Through Hole
Color	Green
Number of Rows	1
Gender	Female
Operating Temperature	-40°C ~ 105°C
Package	Box
Number of Positions	39
Termination	Wire Wrap
Contact Finish	Gold
Contact Type	Cantilever
Contact Finish Thickness	10.0μin (0.25μm)
Features	-
Flange Feature	Flush Mount, Floating Bobbin, 0.116\" (2.95mm) Dia
RoHS	RoHS
Contact Material	Copper Alloy
Read Out	Single
