2STR2230

TRANS PNP 30V 1.5A SOT-23

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: 2STR2230

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2STR2230 Description

Operating Temperature	-65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	800mV @ 200mA, 2A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1.5 A

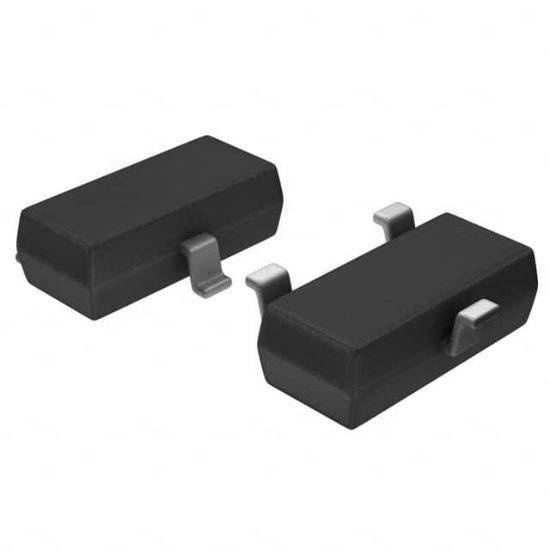

Supplier Device Package	SOT-23-3
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	30 V
Power - Max	500 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	170 @ 500mA, 2V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	PNP
