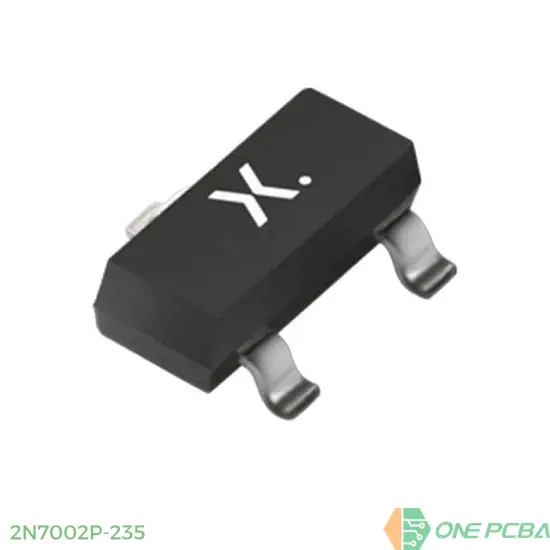

2N7002P,235

MOSFET N-CH 60V 360MA TO236AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: 2N7002P,235

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N7002P,235 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	360mA (Ta)
Rds On (Max) @ Id, Vgs	1.6Ohm @ 500mA, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	350mW (Ta)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	0.8 nC @ 4.5 V
Supplier Device Package	TO-236AB
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 10 V
RoHS	RoHS
