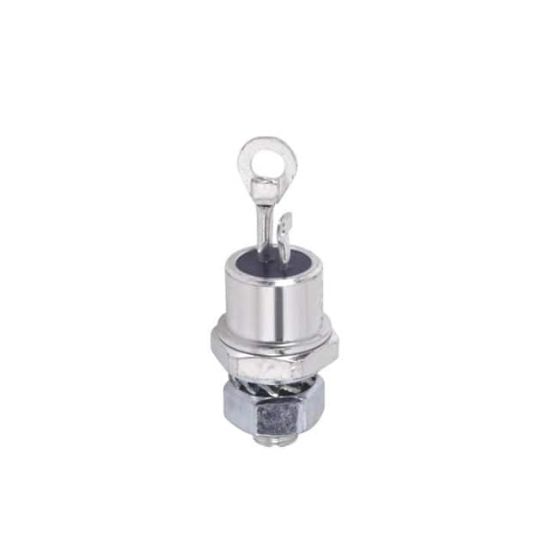

2N686-6278122

TO 48 25 AMP SCR

1 review(s) | Add your review

Availability: In stock

Manufacturer: Solid State Inc.

SKU: 2N686-6278122

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N686-6278122 Description

Operating Temperature	-65°C ~ 125°C (TJ)
Current - Off State (Max)	2 mA
Mounting Type	Stud Mount
Supplier Device Package	TO-48
Voltage - Gate Trigger (Vgt) (Max)	2 V
Voltage - Off State	250 V
Current - On State (It (AV)) (Max)	16 A
Current - Gate Trigger (Igt) (Max)	40 mA
Package	Box
Current - Non Rep. Surge 50, 60Hz (Itsm)	150A @ 60Hz
Current - On State (It (RMS)) (Max)	25 A
SCR Type	Standard Recovery
Voltage - On State (Vtm) (Max)	2 V
Current - Hold (Ih) (Max)	50 mA
RoHS	RoHS
