2N5401RA

SMALL SIGNAL BIPOLAR TRANS PNP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: 2N5401RA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N5401RA Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 50mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	600mA

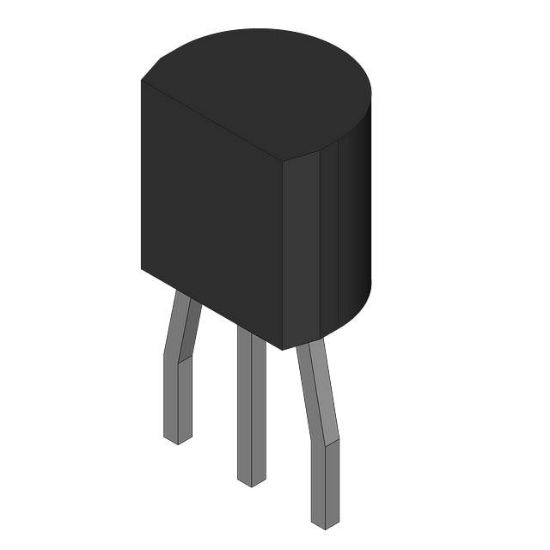

Supplier Device Package	TO-92 (TO-226)
Current - Collector Cutoff (Max)	50μA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	150V
Power - Max	625mW
Package	Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 10mA, 5V
Frequency - Transition	400MHz
RoHS	RoHS
Transistor Type	PNP
