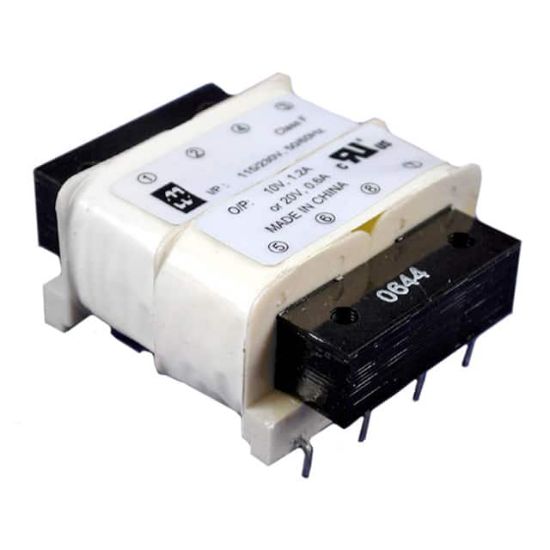

229C30

PWR XFMR SEMI-TORO 24VA TH

1 review(s) | Add your review

Availability: In stock

Manufacturer: Hammond Manufacturing

SKU: 229C30

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

229C30 Description

Current - Output (Max)	Parallel 1.6A, Series 800mA
Termination Style	PC Pin
Mounting Type	Through Hole
Primary Winding(s)	Dual
Secondary Winding(s)	Dual
Size / Dimension	57.15mm L x 72.90mm W
Power - Max	24VA
Package	Bulk
Weight	1.1 lbs (499 g)
Voltage - Primary	115V, 230V
Type	Semi-Toroidal
Voltage - Secondary (Full Load)	Parallel 15V, Series 30V
Height - Seated (Max)	31.75mm
Voltage - Isolation	1750Vrms
RoHS	RoHS
Center Tap	No
