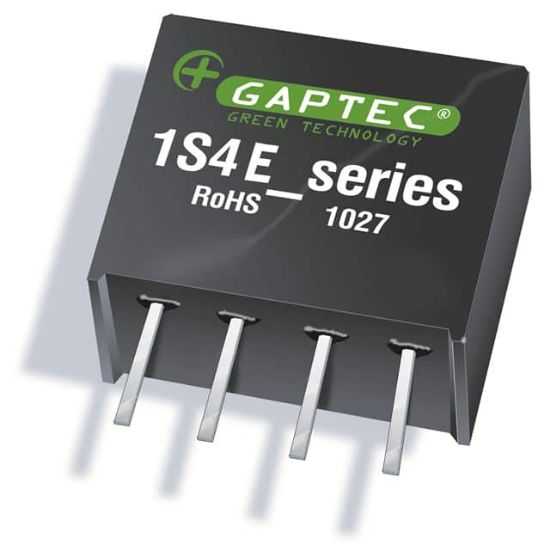

1S4E_4824S1U

DC-DC

1 review(s) | Add your review

Availability: In stock

Manufacturer: GAPTEC Electronic

SKU: 1S4E_4824S1U

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

1S4E_4824S1U Description

Operating Temperature	-40°C ~ 85°C
Voltage - Output 3	-
Current - Output (Max)	50mA
Voltage - Input (Max)	52.8V
Mounting Type	Through Hole
Supplier Device Package	-
Voltage - Output 1	24V
Size / Dimension	0.46\" L x 0.24\" W x 0.40\" H (11.7mm x 6.0mm x 10.2mm)
Voltage - Isolation	1 kV
Voltage - Input (Min)	43.2V
Package	Tube
Voltage - Output 4	-
Efficiency	80%
Control Features	-
Approval Agency	CE
Power (Watts)	1.2 W
Type	Isolated Module
Standard Number	60950-1
Number of Outputs	1
Applications	ITE (Commercial)
Features	-
RoHS	RoHS
Voltage - Output 2	-
